Products & Services
Vikas Metals offers Shot Peened Steel Pipes, long radii Elbow and Pipe Fittings for pneumatic conveying,
industrial vacuum and carrier pneumatic applications
Shot Penning
Vikas Metals offers Shot Peened Steel Pipes, long radii Elbow and Pipe Fittings for pneumatic conveying, industrial vacuum and carrier pneumatic applications

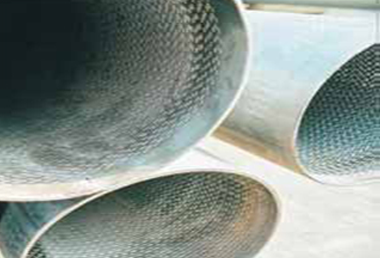

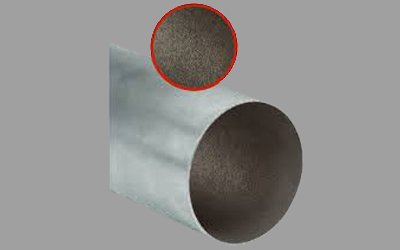

Shot Peening of Pipes
We specialize in internal shot peening services of Stainless Steel Pipes which increase turbulence of materials passing through the system to reduce clogging due to angel hair or stringers.
SERVICE DETAILS
Our plant is equipped with automatically controlled shot peening machines for wide range of components of job diameter upto 1 meter with consistent and unerring results. The finish is consistent and covers total internal surface of the pipe.
Depending on the type and quantity of the material and on the transport velocity, different pipe surfaces, from smooth to rough, are required. Vikas Metals uses different techniques – shot-peening – to achieve the defined degree of roughness of the inner pipe surfaces.
The Internal Surface Treatment of conveying pipe is very important. The following roughness is recommended
| Characteristics (guide number) |
Aluminium | Stainless Steel |
|---|---|---|
| Rt | 50 | 40 |
| Rtmax acheivable | 200 | 70 |
| Ramin | 8-20 | 5-10 |
| Depth of impression (cm) | 50 | 50 |
We can even perform on-site shot peening of large components whose sizes exceed shipping limitations or which are installed on their foundations. Our field crews perform on-site shot peening worldwide to the same quality standards as our processing centers. We utilize proper coverage and certified peening media to achieve the same high level of quality in our on-site shot peening projects. We can help customers avoid the logistics and costs of shipping oversize equipment, while helping minimize the down time of this equipment with our on-site shot peening capability.

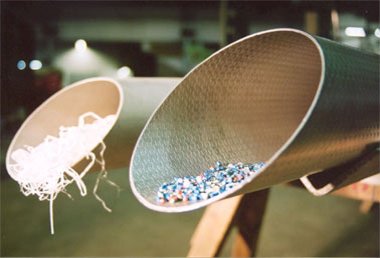

Shot Peened Elbows
Elbows with long radii ensure a safe, clean and careful transport of your products
An essential aspect of the pneumatic conveying technology is the fact that pipe elbows with long radii are used to reduce the impact of granulates with the back of the pipe elbow, thus avoiding a possible damage both of the goods to be transported and the pipe walls. This means that the transport becomes safer and cleaner. Moreover, the demixing of the carrying air and of the goods due to the transport will be reduced. The homogenous conveying of the material avoids the formation of clogging and the resulting pressure losses.

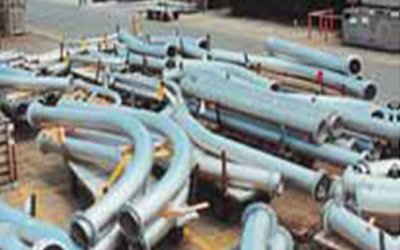

Elbows made to measure
Elbows of any radii and of all required angles can be formed by us. The usual radius is 5 to 10 times the Pipe diameter. Tangents, either at one end or at both ends, can be considered during production. Vikas Metals offers tailor-made long radii pipe elbows with smooth or especially roughened inner surfaces, available in Stainless Steel (SS), Carbon Steel (CS) & Aluminium.
Pipe Fitting
Our complete group of conveying line accessories such as Pipe, Tubing, Elbow, Pipe Fitting, Compression Couplings and Camlock Couplings insure you can get everything you need right here.
We offer a wide range of Tees, Wyes, Laterals and welded items in stock for immediate shipment. Custom-weld fabrications manufactured to customer specific range of sizes and materials. Intricate shapes and special angles are routine for our highly skilled workers.
Make:
- Aluminum
- Carbon Steel
- Galvanized Steel
- Stainless Steel.

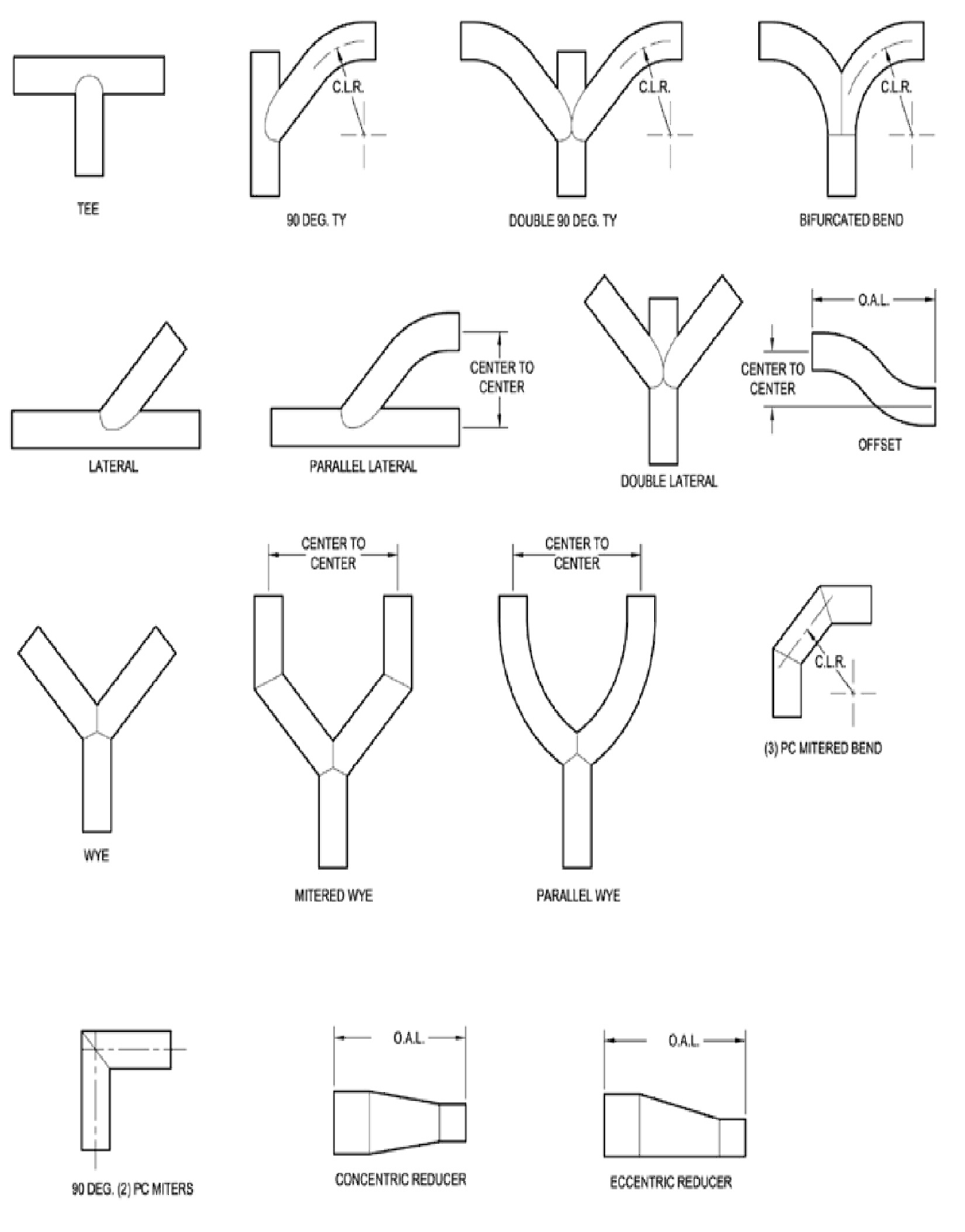

Custom Shapes:
- Laterals
- Parallel Laterals
- GDouble Laterals
- Bifurcated Bends
- Manifolds
- Mitered Bends
- Tees
- Wyes
- Mitered Wyes
- Parallel Wyes
- Concentric Reducer
- Eccentric Reducer
